OUTPUT

This section explains how to select the sorting method when outputting the scanned original.

Auto	Enables the sort mode when the original is placed in the automatic document feeder, and enables the group mode when the original is placed on the document glass.

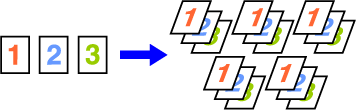

Sort	Sorts the scanned original on a set basis, and outputs them. Example: When 5 is set for the number of copies in sorting

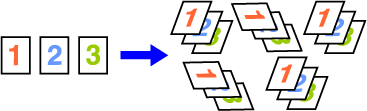

Rotated Output	Sorts the scanned originals into sets, and changes the orientation (portrait/landscape). Example: When 5 is set for the number of copies
Group	Groups the scanned original on a page basis, and outputs them. Example: When 5 is set for the number of copies in grouping

Paper for Rotated Output

Rotated Output can only be selected when the following three conditions are met.

Load one of the supported paper sizes. *


*The only paper sizes that can be used for Rotated Output are B5, B5R, A4, A4R, 8-1/2" x 11", 8-1/2" x 11"R, 16K, 16KR.

Load paper in different orientations (portrait and landscape) in at least two trays. Load the same size of paper.
Load the same type of paper.

For example, load A4 size plain paper 1 vertically in tray 1, and load A4 size plain paper 1 horizontally in the bypass tray.
