OUTPUT AND DENSITY ADJUSTMENT FUNCTIONS

REVERSING WHITE AND BLACK IN A COPY (B/W REVERSE)

This function reverses black and white in a copy to create a negative image. This function can only be used for black and white copying.
Originals with large black areas (which use a large amount of toner) can be copied using Black/White Reverse to reduce toner consumption.

  • B/W Reverse cannot be selected in easy mode.
  • B/W Reverse must be specified before scanning the original.
  • When this function is selected, the "Exposure/Original Type" setting for exposure adjustment automatically changes to "Text".
When this function is selected, you cannot use the [Color Start] key.

Tap the [Others] key, and tap the [B/W Reverse] key.

A checkmark appears on the icon.
After the settings are completed, tap the [Back] key.
To cancel the B/W reverse setting:
Tap the [B/W Reverse] key to uncheck it.

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
AUTOMATIC DOCUMENT FEEDER
DOCUMENT GLASS
To cancel all settings:
Tap the [CA] key.

Tap the [B/W Start] key to start copying.

EASY ADJUSTMENT OF THE IMAGE QUALITY (QUICK IMAGE QUALITY ADJUSTMENT)

You can easily adjust the color and outlines of images and text.

  • Quick Image Quality Adjustment cannot be selected in easy mode.
  • You must select Quick Image Quality Adjustment before scanning the original.

Tap the [Others] key, and tap the [Quick Image Quality Adjustment] key.

Tap or slide the slider to adjust the image quality.

After the settings are completed, tap [OK] key.
To cancel the quick image quality adjustment setting:
Tap the [Off] key.

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
AUTOMATIC DOCUMENT FEEDER
DOCUMENT GLASS
To cancel all settings:
Tap the [CA] key.

Tap the [Color Start] or [B/W Start] key to start copying.

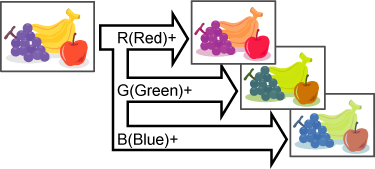

ADJUSTING RED/GREEN/BLUE IN COPIES (RGB ADJUST)

This function heightens or lightens any one of the three color components R (red), G (green), and B (blue).

  • RGB cannot be selected in easy mode.
  • RGB must be specified before scanning the original.

Tap the [Others] key, and tap the [RGB Adjust] key.

Tap the key of the color you want to adjust.

Tap or slide the slider to adjust the coloring.

After the settings are completed, tap [OK] key.
  • Only one color can be adjusted. (If you adjust one color and then tap another color, the adjustment of the first color is canceled.)
  • To cancel the RGB adjust setting:
    • Tap the [Off] key.

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
AUTOMATIC DOCUMENT FEEDER
DOCUMENT GLASS
To cancel all settings:
Tap the [CA] key.

Tap the [Color Start] key to start copying.

ADJUSTING THE SHARPNESS OF AN IMAGE (SHARPNESS)

This function adjusts the sharpness to make a sharper or softer image.

  • Sharpness cannot be selected in easy mode.
  • Sharpness must be specified before scanning the original.

Tap the [Others] key, and tap the [Sharpness] key.

Tap or slide the slider to adjust the sharpness.

Select [More Sharp] for sharper outlines, or [Less Sharp] for softer outlines.
After the settings are completed, tap [OK] key.
To cancel the sharpness setting:
Tap the [Off] key.

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
AUTOMATIC DOCUMENT FEEDER
DOCUMENT GLASS
To cancel all settings:
Tap the [CA] key.

Tap the [Color Start] or [B/W Start] key to start copying.

ADJUSTING THE COLOR (COLOR BALANCE)

You can adjust the color, tone, and density of copies.
Use the [Color] tab for color copy settings, or the [B/W] tab for black & white copy settings.
If you select the [Color] tab, the densities of the colors yellow, magenta, cyan, and black are divided into three ranges, and you can adjust the density of each range. If needed, you can also adjust all three density ranges at once.

  • Color Balance cannot be selected in easy mode.
  • Color Balance must be specified before scanning the original.

Tap the [Others] key, and tap the [Color Balance] key.

Tap the tab of the mode you want to adjust.

Tap the key or slide the slider to adjust the color balance.

  • If you want to adjust each color individually on the [Color] tab, set the [Set in a Batch] checkmark to .
  • If you want to further adjust each range of each color individually, set the [Set in a Group by Color] checkbox to .
  • To adjust each range on the [B/W] tab, set the [Set in a Batch] checkbox to .
  • To adjust a slider individually with the keys, tap the slider you want to adjust and tap the keys.
  • After the settings are completed, tap [OK] key.
    • To return the color balance of the current tab to the default balance:
    Tap the [Reset] key.
    The values of all gradations currently being adjusted will return to their default color balance values.

    Place the original.

    Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
    AUTOMATIC DOCUMENT FEEDER
    DOCUMENT GLASS

    Tap the [Color Start] or [B/W Start] key to start copying.

    ADJUSTING THE BRIGHTNESS OF A COPY (BRIGHTNESS)

    This function adjusts the brightness of a color copy image.

    • Brightness cannot be selected in easy mode.
    • Brightness must be specified before scanning the original.

    Tap the [Others] key, and tap the [Brightness] key.

    Tap the key or slide the slider to adjust the brightness.

    After the settings are completed, [OK] and [Back] keys in sequence.
    To cancel the brightness setting:
    Tap the [Off] key.

    Place the original.

    Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
    AUTOMATIC DOCUMENT FEEDER
    DOCUMENT GLASS
    To cancel all settings:
    Tap the [CA] key.

    Tap the [Color Start] key to start copying.

    ADJUSTING THE INTENSITY OF A COPY (INTENSITY)

    This function adjusts the intensity (saturation) of a color copy image.

    • Intensity cannot be selected in easy mode.
    • You must set the intensity before scanning the original.
    This function cannot be combined with [Copy of Copy] or [Color Tone Enhancement] in Exposure.

    Tap the [Others] key, and tap the [Intensity] key.

    Tap the key or slide the slider to adjust the intensity.

    After the settings are completed, tap the [OK] and [Back] key.
    To cancel the Intensity setting:
    Tap the [Off] key.

    Place the original.

    Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
    AUTOMATIC DOCUMENT FEEDER
    DOCUMENT GLASS
    To cancel all settings:
    Tap the [CA] key.

    Tap the [Color Start] key to start copying.
