MAKING COPIES USING THE BYPASS TRAY

Load paper into the bypass tray.

LOADING PAPER INTO THE BYPASS TRAY
When paper is loaded in the bypass tray, the following screen appears. To use the displayed paper size and paper type, tap the [OK] key

Tap the [Paper Select] key, and tap the bypass tray key.

The bypass tray key displays the size and type of the loaded paper.
SELECTING THE PAPER TRAY FOR COPYING

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
AUTOMATIC DOCUMENT FEEDER
DOCUMENT GLASS

Tap the [Start] key to start copying.

Tap the [Paper Select] key.

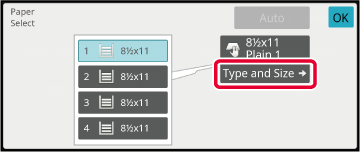

SELECTING THE PAPER TRAY FOR COPYING When paper is loaded in the bypass tray, the following screen appears.

Tap the [Paper Type] key, tap the set paper type key, and then tap the [OK] key.

When changing the paper type by tapping the [Paper Select] key, tap the [Type] tab and select the paper type.

Tap the [Size] tab, and tap the key that meets the size of the loaded paper.

• [Auto-AB]:
Automatically detects the appropriate AB paper size when loading paper such as A4 or B5.

• [Auto-Inch]:
Automatically detects the appropriate inch paper size when loading paper such as 8-1/2"x11".

• [Size Set]:
Tap this key to manually specify the paper size that is not detected automatically.

• [Direct Entry]:
Tap this key to enter a numeric value for the size of the loaded paper.

• [Envelope]:
Tap when an envelope is set. When tapped, the types of envelopes that can be set are displayed, so tap the envelope size you want to set.

After the settings are completed, tap [OK] key.
