REPLACEMENT OF TONER CARTRIDGE

Replace the toner cartridge. When this message appears, prepare a toner cartridge for replacement. Always replace the toner cartridge after the "Change the toner cartridge." message appears. You should keep one set of replacement toner cartridges on hand so that you can replace a toner cartridge immediately when toner runs out.

REPLACEMENT MESSAGE

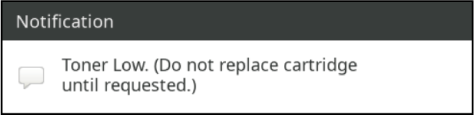

When this message appears, prepare a toner cartridge for replacement.

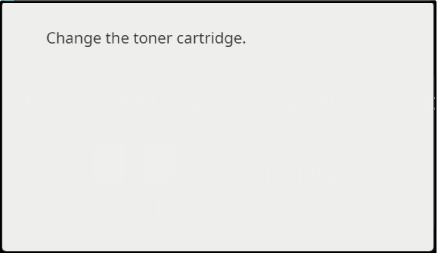

If you continue to use the machine, the following message will appear when the toner runs out.
Once the machine enters this state, printing can not be carried out until the toner cartridge is replaced.

Open the front cover.

Hold both sides and close.

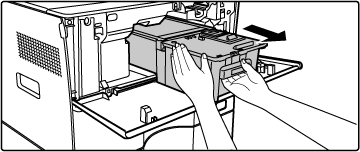

Pull the toner cartridge toward you.

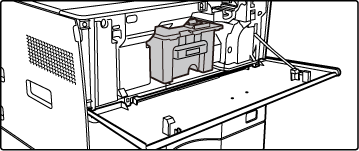

Gently pull out the toner cartridge horizontally.
If the cartridge is pulled out abruptly, toner may spill out.

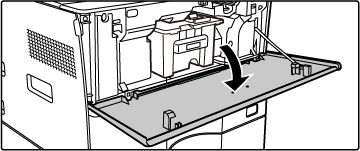

Hold the toner cartridge with both hands as shown and slowly pull it out of the machine.

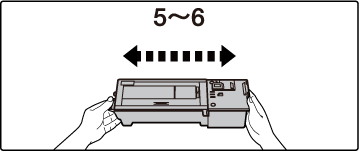

Take out a new toner cartridge from its package and shake it horizontally five or six times.

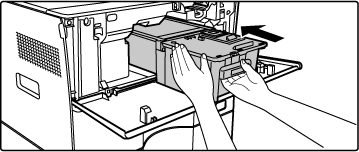

Slowly insert the new toner cartridge on the level.

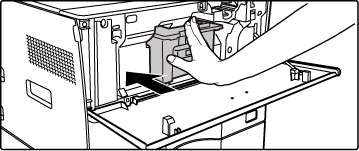

Press in firmly until you hear a "click” sound

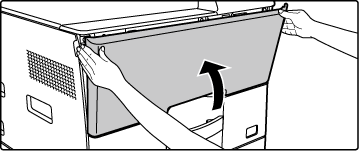

Close the front cover.

After the toner cartridge is replaced, the machine automatically enters image adjustment mode. Do not open the front cover while this is occurring.
Hold both sides and close.

Warning

Do not throw a toner cartridge into a fire. Toner may fly and cause burns.
Store toner cartridges out of reach of small children.
If a toner cartridge is stored upright, the toner may harden and become unusable. Always store toner cartridges on their side.
If a toner cartridge other than a SHARP-recommended toner cartridge is used, the machine may not attain full quality and performance and there is a risk of damage to the machine. Be sure to use a SHARP-recommended toner cartridge.

Depending on your conditions of use, the colour may become light or the image blurred.
Your service technician will collect used toner cartridges. Your service technician will collect them.
To view the approximate amount of toner remaining (indicated in %), hold down the [Home Screen] key during printing or in standby mode. When the percentage falls to "25-0%", keep a toner cartridge for replacement purposes before toner runs out.
When toner runs out while the home screen is displayed, the "Toner Empty" message appears in the upper right corner of the screen.
