SETTING METHOD

This section explains the basic procedure for configuring settings using "Home Screen Settings" as an example. This setting is used to change the background image of a home screen to an image provided by the user.

Connect to the web page as explained in "DISPLAYING THE SETTING MODE (WEB VERSION)".

Display the "Home Screen Settings" setting screen.

  1. Click the [System Settings] tab ().
    2. The setting items of the system settings appear in the setting area.
  2. Click the [Home Screen Settings] button ().

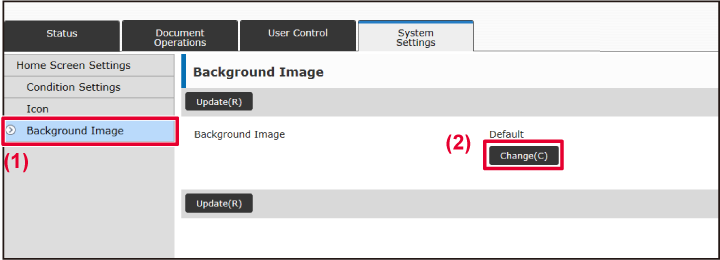

Click [Background Image] in the setting menu and set the background image.

  1. Click [Background Image] in the setting menu.
  2. Click the [Change] button in "Background Image".
    3. The "Register Background Image" screen appears.

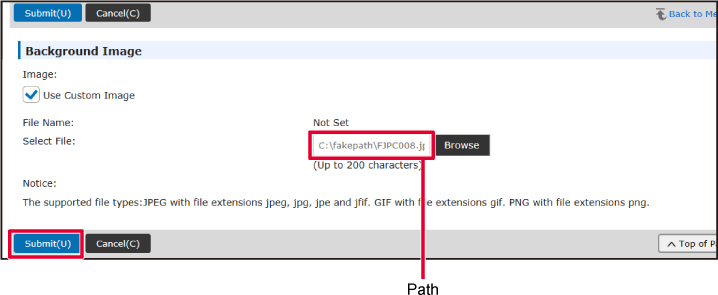

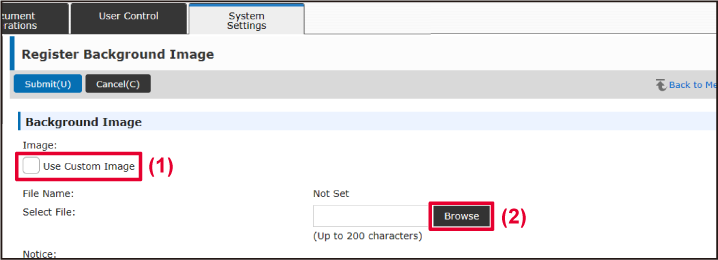

Select "Use Custom Image" and click the [Browse] button to select the desired image.

  1. Check the "Use Custom Image" checkbox
  2. Click the [Browse] button.
    3. When you click the [Browse] button, the file selection screen appears. Select the file of the desired background image.

Click the [Submit] button.

If you have another item you want to set, configure the setting from the setting menu or menu tab.

If you use the "Forward" or "Back" function of the web browser to move to a different item, the item that you set may not be saved. Use the setting menu or menu tab to move to a different item.

When you have finished configuring settings, click the [Logout] button and exit.

When you exit the settings, a message may appear on the touch panel of the machine. Read and then close the message.
