TOUCH TYPES

OPERATION TYPES

In addition to tapping, equivalent to conventional touching, the touch panel of the machine can be operated by long touching.

Multi-touch cannot be used on the touch panel of the machine.

Tapping

Touch the panel with your finger and then lift it quickly. Use this method to select a key, tab or check box.

Long touching

Touch the panel with your finger and hold it for a while.

Press and hold (long touch) the [Shift] key on the keyboard to lock the [Shift] key and continue typing uppercase letters. (Tap the [Shitt] key to unlock it in this state.)

Operation on respective screens

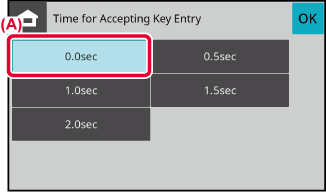

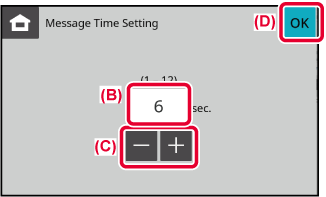

Key (tapping)

A. Tap to select an item. The selected key turns into a different colour.

B. Tap numeric keys to enter numbers.
C. Tap to increase or decrease the value. Long touching causes the value to be increased or decreased until you stop touching.
D. Tap here to close the screen

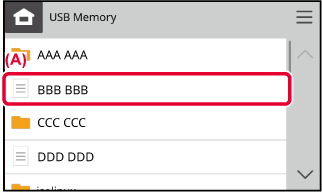

List (tapping, sliding and flicking)

A. Tap to select an item. The selected item turns into a different colour.

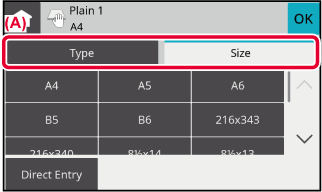

Tab (tapping)

A. Tap a tab to switch what is displayed.

OPERATION OF FREQUENTLY USED KEYS

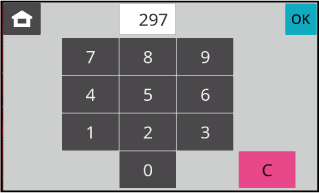

Numeric keys

Tap a number to enter it.
To clear the entered number, tap the [C] key

On the address screen, you can enter characters other than numbers, and a different key layout is provided. You can also move the cursor by using the [←] and [→] keys. Tap the [C] key to delete one character to the left of the cursor.
