Notations
The following symbols are used in this manual.
 |
Indicates important information you have to know or be reminded before operations. |
|---|---|
 |
Indicates supplemental information useful for operations. |
 |
Indicates reference destinations. |
| “ ” | Names and inputs of folders, files, apps, and functions. Also reference pages of the manual. |
| < > | Keys of the keyboard, buttons and lamps of the optional units. |
| [ ] | Tab names, item names, button names, menu names, and file names on the printer operation screen. |
| > | The display order on the control panel. It is used as [Item name] > [Item name]. |
| “ ” | A manual to be referenced. |
- Description in this manual such as print speed and feed capacity assumes 65 g/m² paper.
- “Heavy weight paper” indicates paper whose weight is 221 g/m² or more, and “light weight paper” indicates paper whose weight is 106 g/m² or less.
- “Long paper” indicates paper whose is 488.1 mm landscape or larger.
- There are two paper loading directions: Long Edge Feed and Short Edge Feed.
- The width, length, front edge, rear edge, top, and bottom of paper indicate the following positions. (For the Large Capacity Tray and Bypass Tray, the feeding direction is opposite.)

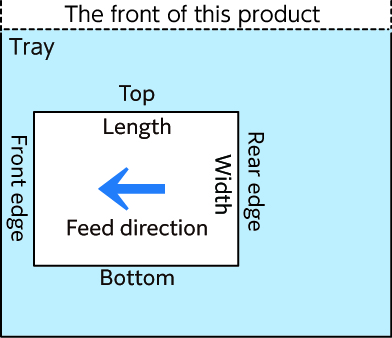

| Long Edge Feed Short side: Length, Long side: Width |

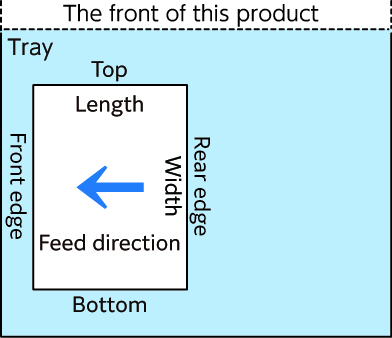

Short Edge Feed Long side: Length, Short side: Width |
|---|---|
 |
 |
- Some functions mentioned in this manual may not be used according to the model and installed optional units.
- XPS stands for XML Paper Specification.
- WSD stands for Web Service on Devices.
