TOUCH TYPES

In addition to tapping, equivalent to conventional touching, the touch panel of the machine can be operated by long touching.

Tapping Touch the panel with your finger and then lift it quickly. Use this method to select a key, tab or check box.

Long touching Touch the panel with your finger and hold it for a while. Press and hold (long touch) the [Shift] key on the keyboard to lock the [Shift] key and continue typing uppercase letters. (Tap the [Shitt] key to unlock it in this state.)

Operation on respective screens

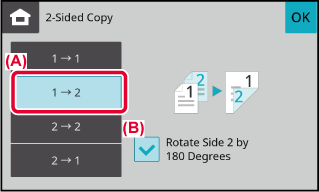

Key (tapping)

A. Tap to select an item. The selected key turns into a different colour.
B. Tap to enter a checkmark and enable the setting.

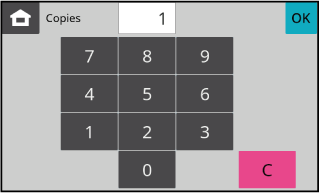

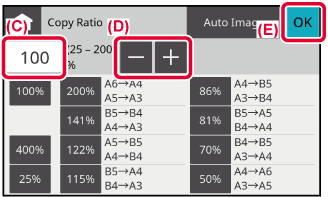

C. Tap numeric keys to enter numbers.
D. Tap to increase or decrease the value. Long touching causes the value to be increased or decreased until you stop touching.
E. Tap here to close the screen

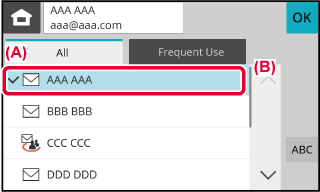

List (tapping, sliding and flicking)

A. Tap to select an item. The selected item turns into a different colour.
B. Slide the bar up and down. It appears when the item does not fit in the screen.

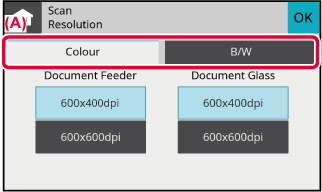

Tab (tapping)

A. Tap a tab to switch what is displayed.
