PRINTING MULTIPLE PAGES ON ONE PAGE

This function reduces the print image and prints multiple pages on a single sheet of paper. You can print only the first page in the original size and print multiple reduced pages on the subsequent sheets.
For example, when [2-Up] (2 pages per sheet) or [4-Up] (4 pages per sheet) is selected, the following print results will be obtained, depending on the selected page order.
This is convenient when you want to print multiple images such as photos on a single sheet of paper, and when you want to conserve paper. When used in combination with 2-sided printing, this function saves more paper.

2-Up (2 pages per sheet)
Left to Right	Right to Left	Top To Bottom (When the print orientation is landscape)

4-Up (4 pages per sheet)
Right, and Down	Down, and Right	Left, and Down	Down, and Left

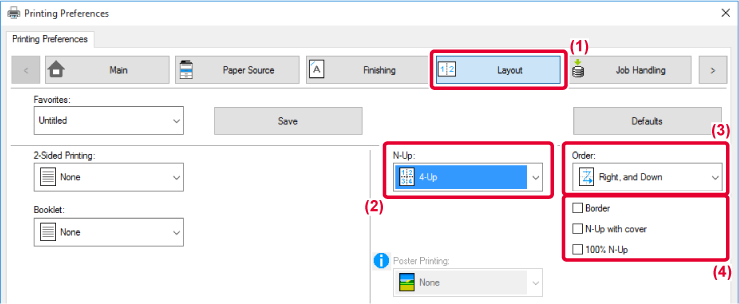

Windows

1. Click the [Layout] tab.
2. Select the number of pages per sheet.
3. Select the order of the pages.
4. If you wish to print borderlines, click the [Border] checkbox so that the checkmarkappears.

• To print the first page normally (as a cover), select the [N-Up with cover] checkbox (). (PCL6 only)
• When [100% N-Up] is selected () for jobs such as N-Up copying of two A5 size pages onto one A4 sheet, the pages will be printed at the full size of the original. If you select [Border] at this time, only the border will be printed.

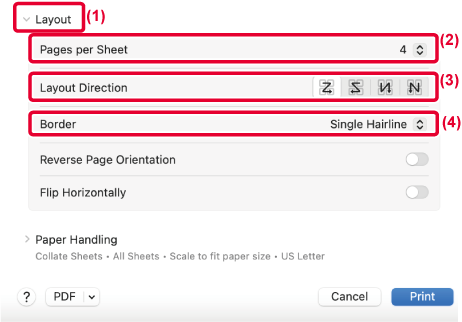

macOS

1. Select [Layout].
2. Select the number of pages per sheet.
3. Select the order of the pages.
4. If you wish to print borderlines, select the desired type of borderline.
