REMOTE OPERATION OF THE MACHINE

Remotely operate the machine on your computer or mobile device such as smartphone.

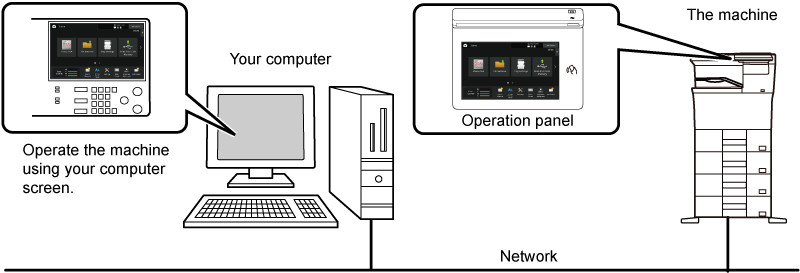

You can operate the machine from the same panel as the machine's operation panel that is displayed on your PC, with the same feel as operating in front of the machine.

The remote operation function can only be used on one device at a time.
Before you can use the remote operation function, the following preparation is required.

• In "Settings (administrator)", select [System Settings] → [Common Settings] → [Operation Settings] → [Condition Settings] → [Remote Operation Settings] → [Remote Software Operation] and select [Allow] for [Operational Authority].
• Connect the machine to the network.
• Install a VNC application software (recommended VNC software: RealVNC) in your device.

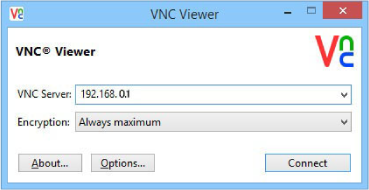

Start the VNC viewer, enter the IP address of the machine in the "VNC Server" entry box, and click the [Connect] button.

Check with the administrator of the machine for its IP address.

Follow the message on the operation panel of the machine to permit the connection.

When the machine is connected to a VNC application software,appears on the system bar of the machine's touch panel.
If you wish to disconnect, exit the VNC application software or tap.

Use the operation panel in the same way as you would on the machine. However, you cannot enter values in series by continuously clicking the key.
