FAX MODE

Fax mode has two modes: basic mode and menu mode.
Basic mode is limited to frequently used functions that allow you to smoothly perform most fax jobs.
If you need to select detailed settings or special functions, use menu mode.

BASIC MODE

Basic mode makes it easy to select basic settings for fax.

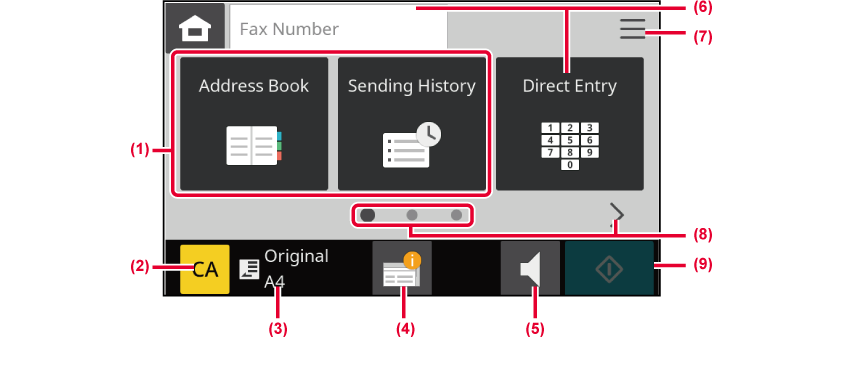

[1st screen]

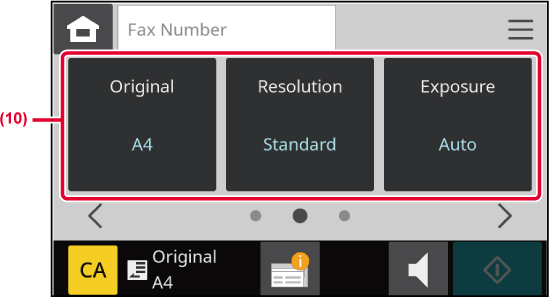

[2nd screen]

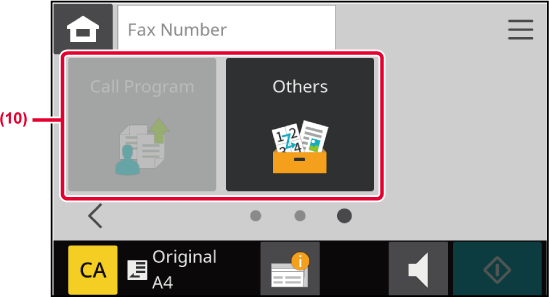

[3rd screen]

Select an address.
Reset the address and settings.
Show the size of the placed original.: SPECIFYING THE ORIGINAL SCAN SIZE IN PAPER SIZE
Opens the Job Status screen.: FAX JOBS
Connects a line before starting sending a fax.
Tap this key to display the numeric keys.
Switches to menu mode.: MENU MODE
Change the function display.
Immediately starts sending a fax.
Select function to be set up.

You can select these functions in basic mode.

SET THE SCANNING OF THE ORIGINALS

CHANGING THE EXPOSURE

CHANGING THE RESOLUTION

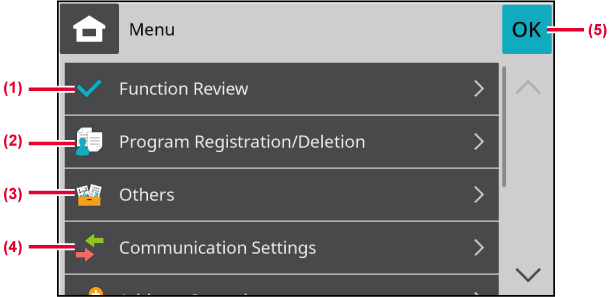

MENU MODE

Menu mode lets you select any function setting that can be used for fax.
[1st screen]

[2nd screen]

This function confirms the contents of the current settings.
Registers or deletes programs.
Displays “Others”.
Set the communication settings.
Closes the menu.
Edit the fax destination.
Prints the received hold data.
Forwards received data.

SELECTING FAX MODE

Change the fax mode to other mode as explained in SWITCH TO HOME SCREEN.

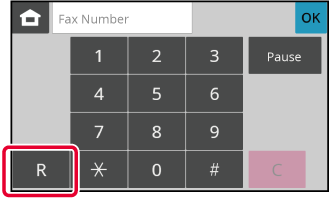

[R] KEY

When the machine is connected to a PBX, the "PBX Setting" can be enabled to automatically connect to the outside line each time you dial normally. When the PBX setting is enabled, the [R] key appears in the base screen. To dial a number inside your PBX, touch the [R] key before dialling to temporarily cancel the "PBX Setting".

This Setting can only be activated in Germany.
The [R] key can be included in a fax number stored in an one-touch key.
When the [Speaker] key is touched, the "PBX Setting" is temporarily cancelled and the [R] key does not appear.
When the [R] key is touched before dialling, an F-code (sub-address and passcode) cannot be used. Likewise, an one-touch key in which an F-code (subaddress and passcode) is stored cannot be used.

System Settings (Administrator): PBX Setting
This is used to enable PBX Setting.
