USING THE AUTOMATIC DOCUMENT FEEDER FOR TRANSMISSION
Storing scanned originals
in machine's memory before transmitting them is called "Memory TX".
This section explains how to scan the original through the
automatic document feeder and send the data by the memory transmission
function.
- To fax a thick original or other
original that cannot be placed in the automatic document feeder,
open the automatic document feeder and place the original on the
document glass.
- If there is a fax job in progress when
the transmission operation is performed, the fax is transmitted
when the job in progress is finished.
- If the memory becomes full while the originals
are being scanned, a message will appear and scanning will stop.
When Quick On Line Sending is enabled for transmission, the scanned
originals are sent.
- To
disable the Quick On Line Sending setting:
In the
Web page, select [System Settings] → [Image Send Settings] → [Fax Settings] → [Send
Settings]
→ [Quick On Line Sending].
If you
disable this setting, memory transmission will not begin until all
pages have been scanned.
- To set the
scan complete sound:
From the
operation panel select [System Settings] → [Sound Settings] → [Beep Sound Settings
(Common)]
→ [Scan Complete Sound (Scan/Fax)].
Place the original in the document feeder tray of the
automatic document feeder.
AUTOMATIC DOCUMENT FEEDERSpecify the destination fax number.
Tap the [Start] key to begin transmission.
When scanning is completed, the machine beeps.
When all originals have been scanned, "Job stored."
will be displayed. This number is recorded in the transaction report and
image sending activity report and can be used to check fax jobs.
PRINTING IMAGE SENDING ACTIVITY REPORTSTo
cancel scanning the original:
Tap the [Cancel Scan] key.
USING THE AUTOMATIC DOCUMENT FEEDER FOR FAXING IN DIRECT TX MODE
Sending a scanned original without saving
it in the machine's memory is called "Direct TX".
This section explains how to scan the original through the
automatic document feeder and directly send it.
To fax a thick original or other original that
cannot be placed in the automatic document feeder, open the automatic
document feeder and place the original on the document glass.
- The following functions
cannot be used with direct transmission:
Timer
Transmission, 2-Sided Scan, Speaker
- Resending will not take
place when a direct transmission is not successful due to a communication
error or other reason.
- If a fax transmission is
already in progress when the direct transmission operation is performed,
the direct transmission will wait until the previous transmission
is finished. When the previous transmission is completed, the direct
transmission will begin.
- While the direct transmission
is waiting, the job status display can be tapped to display the
job status screen. No other operations are possible.
FAX JOBS
Place the original in the document feeder tray of the
automatic document feeder.
AUTOMATIC DOCUMENT FEEDERSelect [Direct TX] from [Communication Settings].
COMMUNICATION SETTINGS
Specify the destination fax number.
Only one destination can be specified. A one-touch
key in which multiple destinations are stored cannot be used.
Tap the [Start] key to begin transmission.
If a fax transmission is already in progress when
the direct transmission operation is performed, the direct transmission will
wait until the previous transmission is finished. When the previous
transmission is completed, the direct transmission will begin.
While the direct transmission is waiting, you can only
check the job status.
FAX JOBSTo
cancel scanning the original:
Tap the [Cancel Scan] key.
USING THE DOCUMENT GLASS FOR TRANSMISSION
Storing scanned originals in machine's memory before transmitting
them is called "Memory TX".
This section explains how to scan the original placed on the
document glass and send the data by the memory transmission function.
- If a fax is being received when the
transmission operation is performed, the transmission will be reserved
and transmission will take place after fax reception is completed.
- If the memory becomes full while the originals
are being scanned, a message will appear and transmission will be cancelled.
Place the original on the document glass.
DOCUMENT GLASSWhen faxing a multi-page original, scan each page
in order starting from the first page.
Specify the destination fax number.
Tap the [Start] key to begin transmission.
When scanning is completed, the machine beeps.

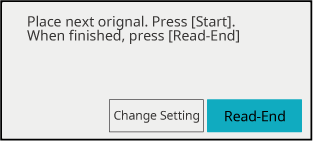

If you have another page to scan, change pages and then
tap the [Start] key.
Repeat until all originals have been scanned.
If no action is taken for one minute, scanning
automatically ends and the transmission is reserved.
Tap the [Read-End] key.
A beep sounds.
Open the automatic document feeder and remove the original.
To
cancel transmission:
Tap the [CA] key before the [Read-End] key
is tapped.
- When all originals
have been scanned, "Job stored." will be displayed.
- If no action is taken for one minute after
the confirmation screen is displayed, scanning automatically ends
and the transmission is reserved.
- The [Change Setting] key can be tapped, if
necessary, to change the exposure, resolution, scan size, and send
size for each original page scanned.
USING THE DOCUMENT GLASS TO SEND A FAX IN DIRECT TX MODE
Sending a scanned original without saving
it in the machine's memory is called "Direct TX".
This section explains how to scan the original placed on the
document glass and directly send data.
When sending a fax from the document glass in direct transmission
mode, only one page can be transmitted.
- The
following functions cannot be used with direct transmission:
Timer
Transmission, 2-Sided Scan, Speaker
- Resending will not take place when a direct
transmission is not successful due to a communication error or other
reason.
- If a fax transmission is already in progress
when the direct transmission operation is performed, the direct
transmission will wait until the previous transmission is finished.
When the previous transmission is completed, the direct transmission
will begin.
- While the direct transmission is waiting,
the job status display can be tapped to display the job status screen.
No other operations are possible.
FAX JOBS
Place the original on the document glass.
DOCUMENT GLASSWhen faxing a multi-page original, scan each page
in order starting from the first page.

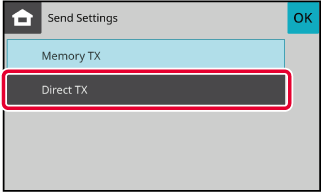

Select [Direct TX] from [Communication Settings].
Specify the destination fax number.
- Only one destination can be specified.
A one-touch key in which multiple destinations are stored cannot
be used.
- The destination cannot be retrieved from
a global address book.
Tap the [Start] key to begin transmission.
When the line has been connected to the destination,
scanning of the original starts.
If a fax transmission is already in progress when
the direct transmission operation is performed, the direct transmission will
wait until the previous transmission is finished. When the previous
transmission is completed, the direct transmission will begin.
To
cancel scanning the original:
Tap the [Cancel Scan] key.
TRANSMISSION USING THE SPEAKER
When the speaker is used to dial, the fax
is sent after the number is dialled and the connection is established.
- If a person answers, you will be
able to hear his or her voice, but you will not be able to speak.
- When the speaker is used, transmission
takes place without scanning the original into memory.
- A one-touch key that has multiple destinations
or has a non-fax destination cannot be used.
Place the original.
Place the original in the document feeder tray of the
automatic document feeder, or on the document glass.
AUTOMATIC DOCUMENT FEEDER

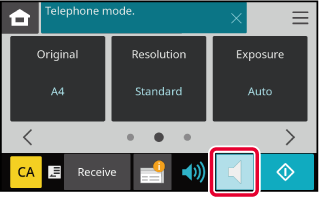

DOCUMENT GLASSTap the [Speaker] key.
When the connection is established, you will hear the
dial tone through the machine's speaker.
Tapping
allows you to adjust the volume of the
speaker.
Specify the destination fax number.
A one-touch key in which multiple destinations
are stored cannot be used
When the connection is made, tap the [Start] key
to begin transmission.
To
cancel transmission:
To stop transmission, tap the [Cancel] key.
SENDING THE SAME FAX TO MULTIPLE DESTINATIONS (BROADCAST TRANSMISSION)

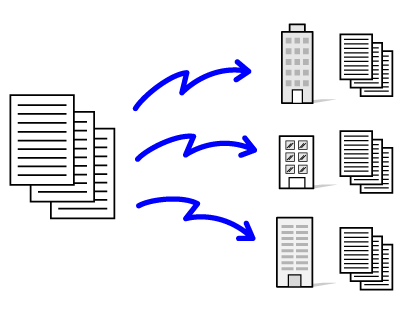

You can send a fax to multiple destinations
in a single operation when, for example, sending a report to branch
offices in different regions. This function is called "Broadcasting".
One operation allows you to send data to up to 100 destinations,
including the reserved send jobs. (For example, if broadcast transmission
jobs with 70 destinations are already reserved, data can be broadcasted
to up to 30 destinations.)
It is convenient to store destinations you frequently
use for broadcast transmission as contacts or groups. A maximum
of 100 destinations can be stored in one contact.
For broadcast transmission, the contact or group key can be
simply tapped to retrieve multiple fax numbers.
ADDRESS BOOK DESTINATION REGISTRATION
If this function is combined with
"Timer Transmission", broadcast transmission can be performed at
any time, such as at night.
A broadcast transmission can also be
used in combination with other convenient functions.
Place the original.
Place the original in the document feeder tray of the
automatic document feeder, or on the document glass.
AUTOMATIC DOCUMENT FEEDER
DOCUMENT GLASSSpecify all destinations.
After entering a destination using the numeric keys, if you wish
to enter another destination using the numeric keys, tap
before entering the next destination.
can be omitted before or after a destination
entered using a one-touch key.
If "Be sure to press Next Address Key ([+]) before selecting the next address." is
enabled in setting mode, tap
before specifying the next destination.

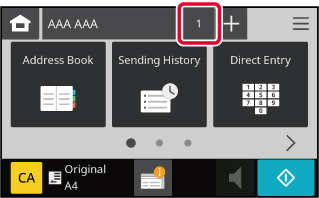

Tap the All Destinations key.

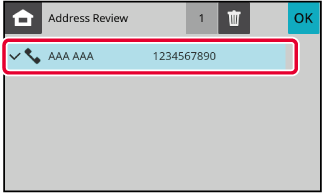

Confirm the destination.
Tap the [Start] key to start scanning of the original.
- If you inserted
the original pages in the document feeder tray, all pages are scanned.
A beep will sound to indicate that scanning
and transmission have ended.
- When you place the original
on the document glass, scan each page one at a time.
When scanning finishes, place the next
original and tap the [Start] key.
Repeat the procedure until all pages have
been scanned and then tap the [Read-End] key.
A beep will sound to indicate that scanning
and transmission have ended.
RESENDING TO UNSUCCESSFUL BROADCAST TRANSMISSION DESTINATIONS
The results of a completed broadcast transmission
can be checked in the job status screen. If transmission to any
of the destinations failed, resend the fax to those destinations.

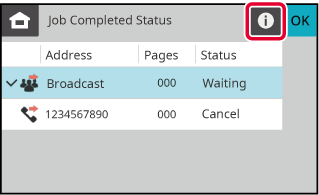

Tap the [Fax Job Status] key, then tap the [Job Completed
Status] key.
Tap the sequential broadcast transmission key to finish transmission,
and then tap
.
After tapping the [Failed] tab, tap [Resend to All Addresses Which Failed in Sending]
to resend the image.
SENDING A FAX DIRECTLY FROM A COMPUTER (PC-Fax)
A file on a computer can be sent via the
machine as a fax (PC-Fax function). Faxes are sent using the PC-Fax
function in the same way that documents are printed. Select the
PC-Fax driver as the printer driver for your computer and then select
the Print command in the application. Image data for transmission
will be created and sent as a fax.
By using the "Log Viewer" application, faxes can be sent using
the transmission log displayed in the Log Viewer.
- Log Viewer
-
Re-send faxes using
the transmission log
For the procedures for using this function, see the
PC-Fax driver Help.
- To use the PC-Fax function, the PC-Fax
driver must be installed. For more information, see the Software
Setup Guide.
- This function can only be used on a Windows®
computer.
Only transmission is available for this function.
Faxes cannot be received by your computer.
